Wizard

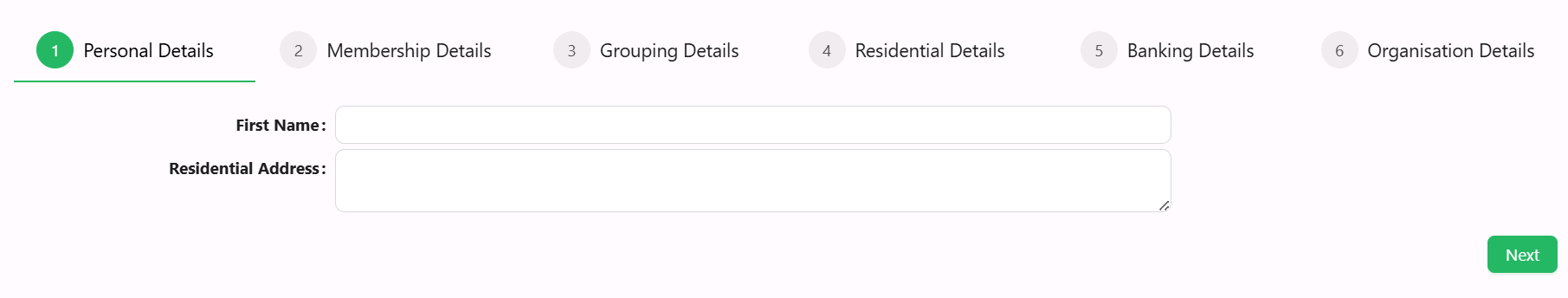

The Wizard component enables multi-step forms by segmenting fields across several pages with navigation controls. It's ideal for complex data entry processes where progressive disclosure improves the user experience.


Get Started​

Properties​

Common​

Wizard Type string​

Sets the layout style:

  • Default (default)
  • Navigation

Direction object​

Defines orientation:

  • Horizontal (default)
  • Vertical

Label Placement object​

Controls how labels are positioned:

  • Horizontal (default)
  • Vertical

Default Active Step object​

The step index that should be active on load.

Configure Steps​

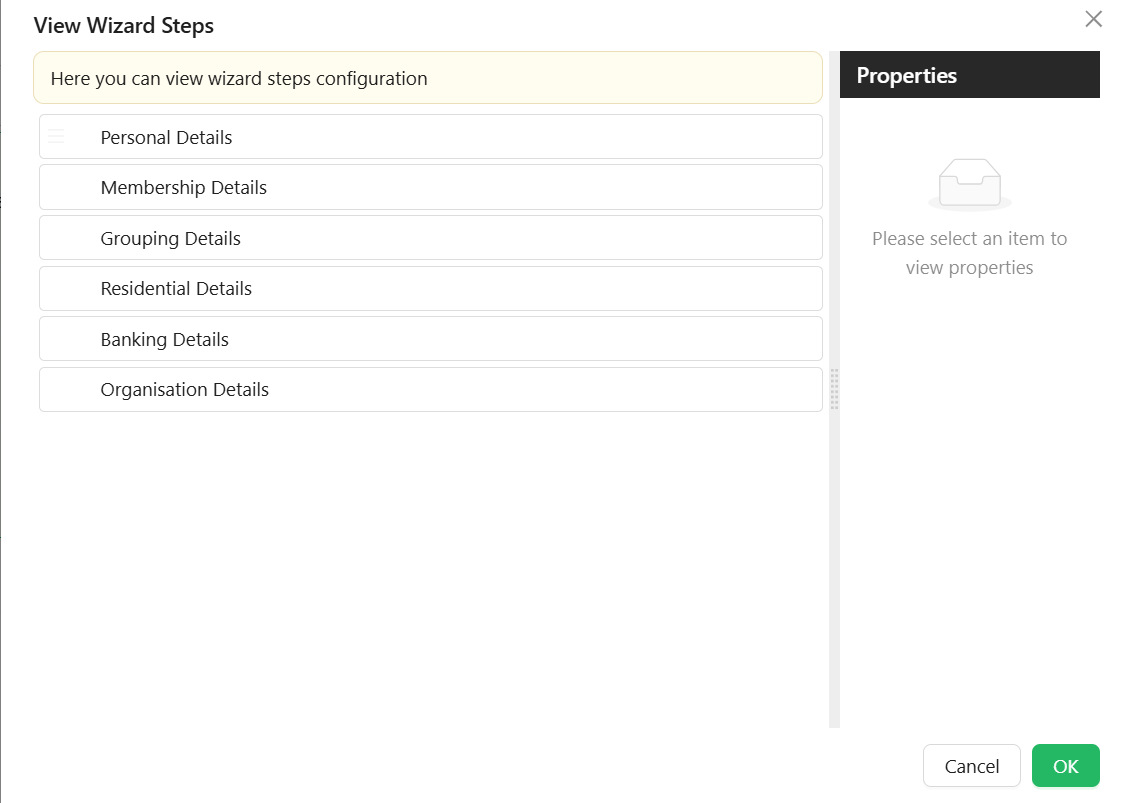

Image List of steps with their titles, icons, and content configuration.

  • Component Name string – Identifier for the component in that step
  • Title string – Step title shown in the wizard UI.
  • Subtitle string- Step subtitle is a secondary heading or a supporting piece of text that provides additional context or information related to the main title.
  • Description string - Step description is a more extensive piece of text that elaborates on the details introduced in the title and subtitle. It provides a comprehensive explanation or additional information.
  • Key string – Unique key for the step.
  • Icon object - Users can select an icon to be displayed on each wizard step.
  • Allow Cancel boolean - When set to true, this property enables a cancel button for the wizard step. The behavior is determined based on the configurations defined in the cancel event.
  • Can Skip Toboolean – Whether this step can be skipped to from other steps.

Button Titles​

Each button title can be customized to meet business requirements. Each Wizard Step has 4 button tabs:

  • Next Button
    • Text string – This is the title of the Next button.
    • Before Next Action function - An action triggered before the step moves to the next one.
    • After Next Action function - An action triggered after the step has moved to the next one.
  • Back Button
    • Text string – This is the title of the Back button.
    • Before Back Action function - An action triggered before the step moves to the previous one.
    • After Back Action function - An action triggered after the step has moved to the previous one.
  • Done Button
    • Text string – This is the title of the Done button.
    • Before Done Action function - An action triggered before the wizard completes the final step.
    • After Done Action function - An action triggered after the wizard has completed the final step.
  • Cancel Button
    • Text string – This is the title of the Cancel button.
    • Before Cancel Action function - An action triggered before the cancel event occurs.
    • After Cancel Action function - An action triggered after the cancel event occurs.

These button titles all have a custom enabled function.

After any of the button events, you can handle both success and failure.

On Before Render function - An action triggered before the step renders.​

Button Custom Enabled function​

  • This allows for a custom javascript code to be added to determine whether a button is enabled. For instance, you may want to prevent users from proceeding before entering mandatory fields. In such cases, the button can be disabled and only enabled after the mandatory fields are captured.

In this example, the fields firstName, lastName and emailAddress1 are manadatory and movement to the next step should be restricted if they have not been captured

if (formMode != "designer") {
  //this is to prevent movement to the next step while on the form designer
  return (
    isValidProperty(data.firstName) &&
    isValidProperty(data.lastName) &&
    isValidProperty(data.emailAddress1)
  );
}

function isValidProperty(value) {
  return value !== undefined && value !== "";
}

Using JS code​

You can use JS script of some controls (Buttons, etc.) to manage Wizard Component

contexts.wizardName.current - get the current step index (zero-based) contexts.wizardName.visibleSteps - get the list of visible steps (object IWizardStepProps)

interface IWizardStepProps extends IConfigurableItemBase {
  id: string;
  icon?: string;
  key: string;
  title: string;
  subTitle: string;
  description: string;
  allowCancel?: boolean;

  cancelButtonText?: string;
  nextButtonText?: string;
  backButtonText?: string;
  doneButtonText?: string;
  ...
}

Actions to move between steps:

  • contexts.wizardName.api.next() - to the next step
  • contexts.wizardName.api.back() - to the previous step
  • contexts.wizardName.api.done() - finish the wizard (execute Done configurable actions)
  • contexts.wizardName.api.cancel() - canel the wizard (execute Cancel configurable actions)
  • contexts.wizardName.api.setStep(index) - move to the step with Index (will be executed On Before Render configurable action)

Hide boolean​

Controls the visibility of the entire wizard component.

Appearance​

Font object​

Customize how your wizard look. Choose the font family, size, weight, and color.

Dimensions object​

Set the width, height, min/max sizes of the component.

Border object​

Personalize the borders:

  • Set border width, color, and style
  • Round the corners for a softer touch

Background object​

Pick your flavor of background:

  • Color
  • Gradient
  • Image URL
  • Uploaded Image
  • Stored File

Shadow object​

Give depth with adjustable shadows:

  • Offset, Blur, Spread, Color

Margin & Padding object​

Fine-tune spacing inside and around the component.

Custom Styles function​

Inject your own CSS styles via JavaScript (must return a style object).

Additional Styles object​

  • Button Layout string: Layout direction of navigation buttons. (Left, Right, Space between)

  • Primary Color object: Main highlight color.

  • Primary Text Color object: Text color for primary elements.

  • Secondary Color object: Secondary accent color.

  • Secondary Text Color object: Text color for secondary elements.

Advanced Wizard​
