Kanban

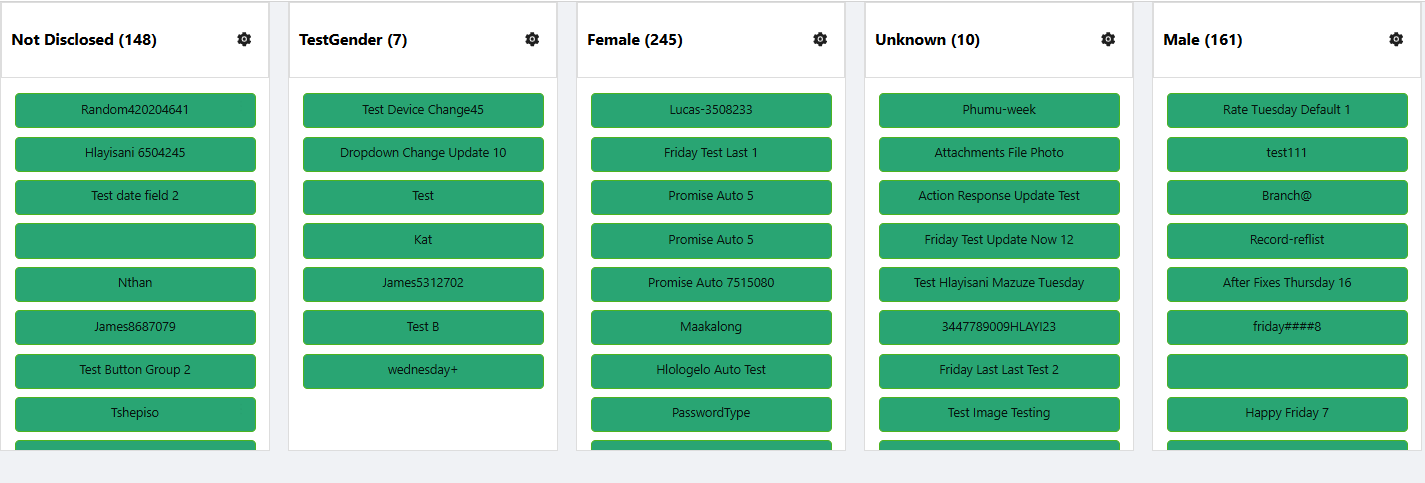

The Kanban board is a visual project management tool that helps teams organize tasks and track their progress. It provides a clear overview of the status of each task, allowing users to move task cards between columns such as "To Do," "In Progress," and "Done."


Properties

The following properties are available to configure the behavior of the component from the form editor (this is in addition to common properties).

Common

Render Form object

The modal form that opens when a card is clicked. (Required)

Grouping Property string

Field in your data model used to categorize items into columns. (Required)

Readonly boolean

Disables drag-and-drop and editing capabilities.

Allow Delete boolean

Toggles the ability to remove cards from the board.

Show Icons boolean

Toggles icon visibility on card headers.


Allow New Record boolean

Allows users to add new items to the board.

Allow New Record

  • Create Form This option will appear when Allow New Record is enabled. You can select the form that will be used to create new tasks.

Allow Edit boolean

Enables in-place card editing or modal editing.

Allow Edit

  • Edit Form: This option will appear when Allow Edit is enabled. You can select the form that will be used to edit existing tasks.

Collapsible boolean

If this option is enabled, you will be able to collapse each column to save space and reduce visual clutter.


Appearance

  • Gap: This property specifies the space between columns, giving you control over the layout and spacing

Data

Reference List object

The list used to define columns on the board. Re-select if reference list items are modified.

Items object

Selector for customizing which reference list items appear as columns.


Features

  • Drag and Drop: Easily move cards between columns with a simple drag-and-drop interface.
  • Customizable Columns and Cards: Adjust columns and cards to suit your specific workflow and project needs.
  • Collapsible Cards: Minimize individual cards to reduce clutter on the board.
  • Customizable Styles: Modify the appearance of the Kanban board to fit your preferences, from colors to fonts.

How to Configure the Component

Location of the Component

The Kanban Component can be found under the Advanced group in the form designer.

Kanban Component Location

Configuration Steps

Follow the steps below to configure the Kanban Component:

1. Add the Component

  • Navigate to the Advanced group in your form designer.

  • Drag and drop the Kanban Component onto your form.

    Kanban Component Dragged

2. Configure the Component Properties

Component Properties Component Properties

Display Section

  • Entity Type: Choose the entity from which the component will pull data. This selection will enable auto-complete functionality for other properties. For example, you might select the entity Person if your tasks are related to people.

  • Component Name: Provide a unique name for this component, especially if more than one Kanban board is being used within the same form. This helps in identifying and managing different boards.

  • Render Form: Select the form that will display the details for each task. This form defines how individual tasks will be rendered on the board.

  • Grouping Property: Choose the property by which tasks will be grouped into columns. This property should typically be of the type reference-list (e.g., status, priority, or gender).

  • Max Result Count: Specify the maximum number of tasks to be fetched from the database and displayed on the board.

Columns Section

  • Reference List: Select the reference list that will categorize the tasks. For instance, you might choose a list like status to organize tasks by their current state (e.g., To Do, In Progress, Done).

    • Once the reference list is selected, all items within that list will be displayed as columns.

      Configured List

    • You can reorder the columns based on your preferences to better match your workflow.

    • Each column will display a gear icon when hovered over, allowing you to configure actions specific to that column. For instance, you can define what should happen when a task is dropped into a particular column, or choose to hide certain columns.

      Gear Icon

    • When you click the gear icon, a configuration window will appear, enabling you to define specific actions for each column.

      Action Configuration

After this, your Kanban board should have a basic structure and functionality, though without custom styling applied yet.
